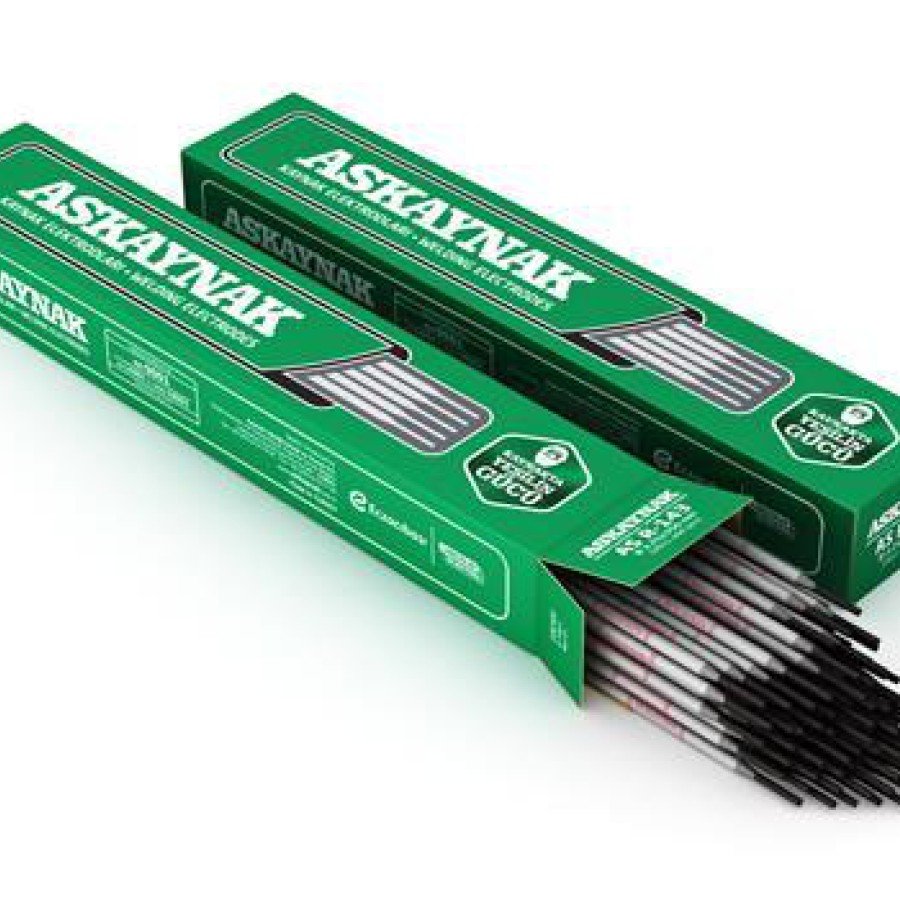

Askaynak AS R-143 Rutile Welding Electrode 3,20x350

It has a thick cover with rutile characters.

The mechanical properties of the weld metal obtained are higher compared to AS R-116.

Weld metal has high resistance to cracking.

Slag is easily removed and high quality, smooth welding seams are obtained.50V/DC (-)

Diameter (mm) 2.50

Length (mm) 250

Welding Current (Ampere) 90 - 140

Electrode Weight (gr/100 pieces) 3230

• Quantity of Electrodes in the Box (pcs) 100

• Box Weight (kg) 3,2

Classification and Chemical Analysis of Weld Metal (Typical)

Mechanical Properties of Weld Metal (Typical)

Areas of Use and Sourced Materials

Welding Parameters and Packaging Information

Note: Re-drying temperature 70-80°C / 1 is the hour.

It is a general purpose electrode and is used especially for welding low and medium carbon structural steels between St33 - St52.3.

Machine, bridge constructions and boiler production, bodywork manufacturing, steel furniture, iron joineryOther areas of use include metal welding, chassis, auto body sheet metal welding and small-scale repair applications.

rgb(0,0,0)">TS EN ISO 2560-A	:	E 42 0 RR 12
AWS A5.1	:	E6013
EN ISO 2560-A	:	E 42 0 RR 12

C	Si	Mn
0.08	0.35	0.65



Yield Strength	:	480	(N/mm²)
Tensile Strength	:	550	(N/mm²)
Extension (L=5d)	:	25	(%)
Impact Resistance	:	60	(Joule)	(at 0°C)
		40	(Joule)	(at –20°C)

General Structural Steels:

DIN: St 33, St 34, St 37, St 44, St 44-2, St 44-3, St 52, St 52-3 EN: S185, S235, S275, S355 DIN: St 37-4, St 44-4, St 52-4 EN: P235TR2 - P355T2

Fine Grain Steels :

DIN: StE 255 - StE 420 EN: S255N - S420N DIN: WStE 255 EN: P255NH

High Temperature Steels:

rgb(0,0,0)">DIN: St 35-8, St 45-8 EN: P235G1TH - P255G1TH

rgb(0,0,0); font-variant-east-asian: inherit; font-stretch: inherit; border-image: initial">Pipe Steels:

rgb(0,0,0)">DIN: StE 210-7 - StE 360-7 EN: L210 - L360NB DIN: StE 290-7 TM-StE 360-7 TM EN: L290MB - L360MB DIN: X42, X46, X52, X60 (API 5LX)

Boiler and Pressure Vessel Steels:

DIN: HI, HII, HIII EN: P235GH, P265GH, P285NH DIN: 17 Mn 4, 19 Mn 6 EN: P295GH, P355GH

Ship Plates :

DIN: A, B, It is easy to ignite and re-ignite the electrode before welding. Current Type and Polarity: AC min.D DIN: AH32 - EH36

rgb(0,0,0); font-variant-east-asian: inherit; font-stretch: inherit; border-image: initial">Cast Steels:

rgb(0,0,0)">DIN: GS-38, GS-45, GS-52 EN: GE200, GE240, GE260
